300mm three unit arrow combination LED traffic signal lamp
Product Name:
300mm three unit arrow combination LED traffic signal lampModel No.:
FX300-3-RYGMinimum Order:
1
Product Abstract:
FX300-3-RYG three unit arrow combination LED traffic signal lamp,ultra-high brightness light-emitting diode chips AlInGaP and InGaN as a product of light, low power consumption, long life, maintaining a reasonable cost of the product.
- Product Description
Product Description:
Ultra-high brightness light-emitting diode chips AlInGaP and InGaN as a light source, low power consumption, long life of the product, to maintain a reasonable cost products.
Special circuit design, even if the individual LED damage does not affect the normal operation of other LED's, uniform optical distribution.
Using 110-250V constant voltage constant current power supply, wide voltage range.
Incandescent light emitting diode comparison signal lights can save 7-9 times more energy.
Match the existing traffic control logic, light box structure, easy installation.
Features:
High efficiency, long life;
Ultra-thin design, PC material, lightweight;
Novel structure, beautiful appearance;
Moisture, dust; high sealing performance, good waterproof effect;
High temperature resistance, vibration, low power consumption;
Benefits:
High quality imported 14 microns four elements LED wafer fabrication;
Voltage constant current switching power supply and LED load current balancing circuit design;
AC or DC 90V-250V wide operating voltage range
To prevent the leakage current causes the error display signal circuit design;
Internal surge protection impact of the high efficiency, low temperature rise of the quick start power supply;

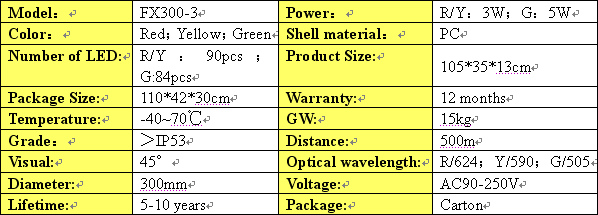

Technical Reference:
If the English expression error,Chinese version shall prevail
The company has the power of final interpretation
